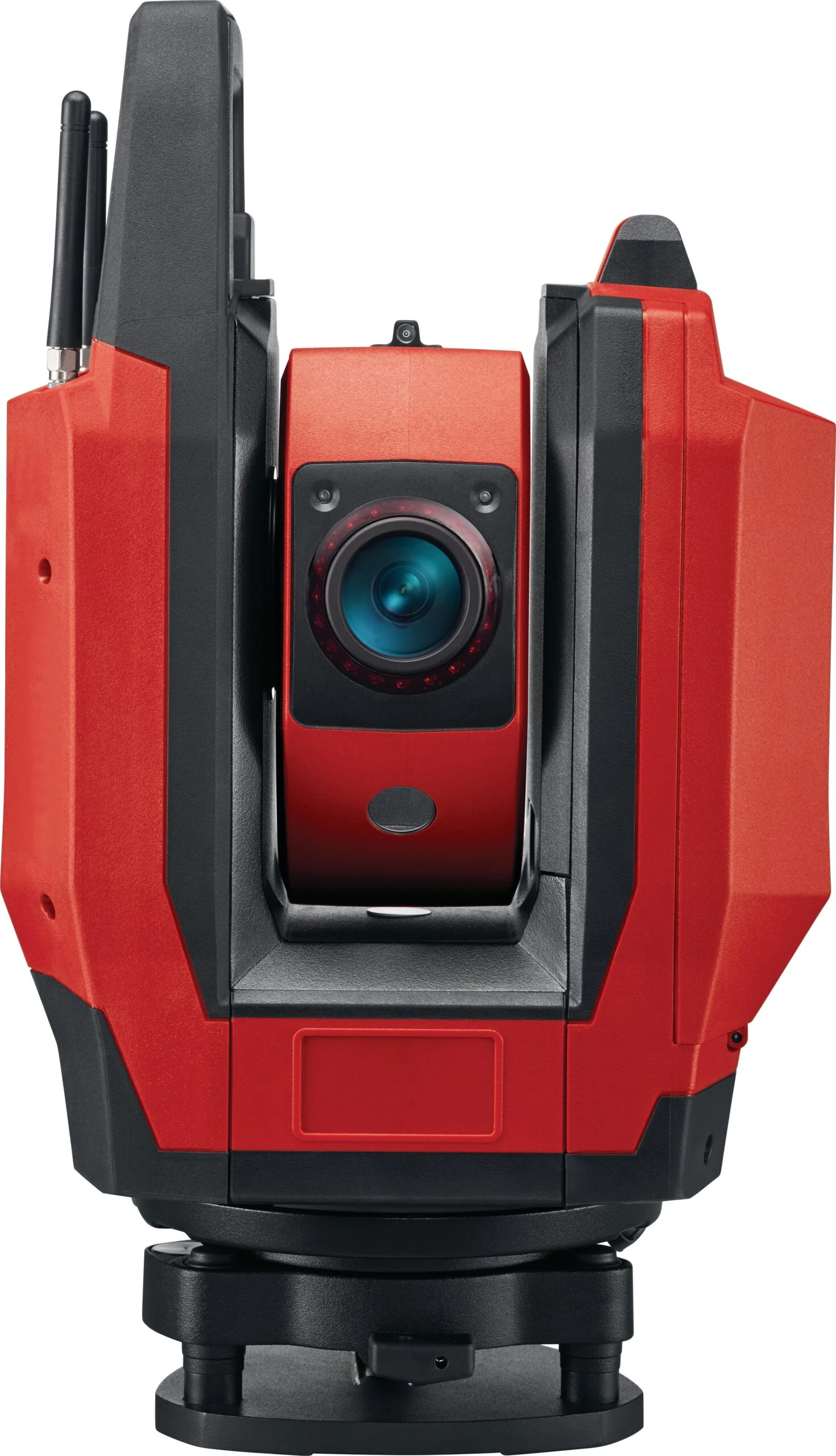

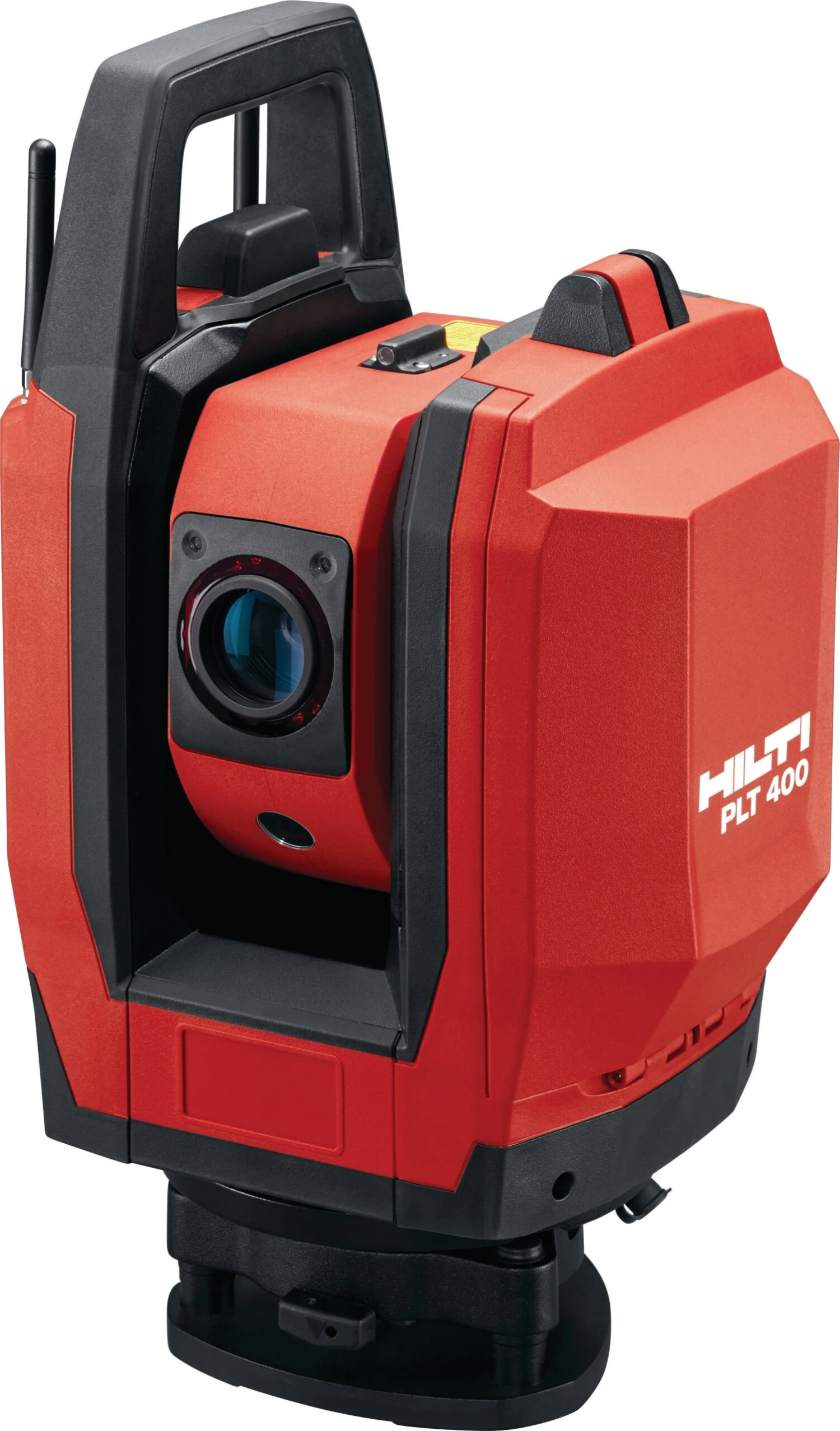

PLT 400-2 Construction Layout Tool

Your one-for-all solution – ease of use combined with higher range, accuracy and versatility for all construction site layout and measuring tasks

Save time and labor – digital construction layout tools make staking out a much faster, one-person job by enabling direct access to your CAD/BIM elements without time-consuming preparation work

Highest flexibility – zoom camera for simpler long-range targeting, including fully automatic search for optional lock-on prisms or other targets

Extended working distance – up to 200 m diameter range as standard

Accurate for every point – the first construction layout tool worldwide with self-calibration and automatic diagnostics to help ensure more accurate work every time

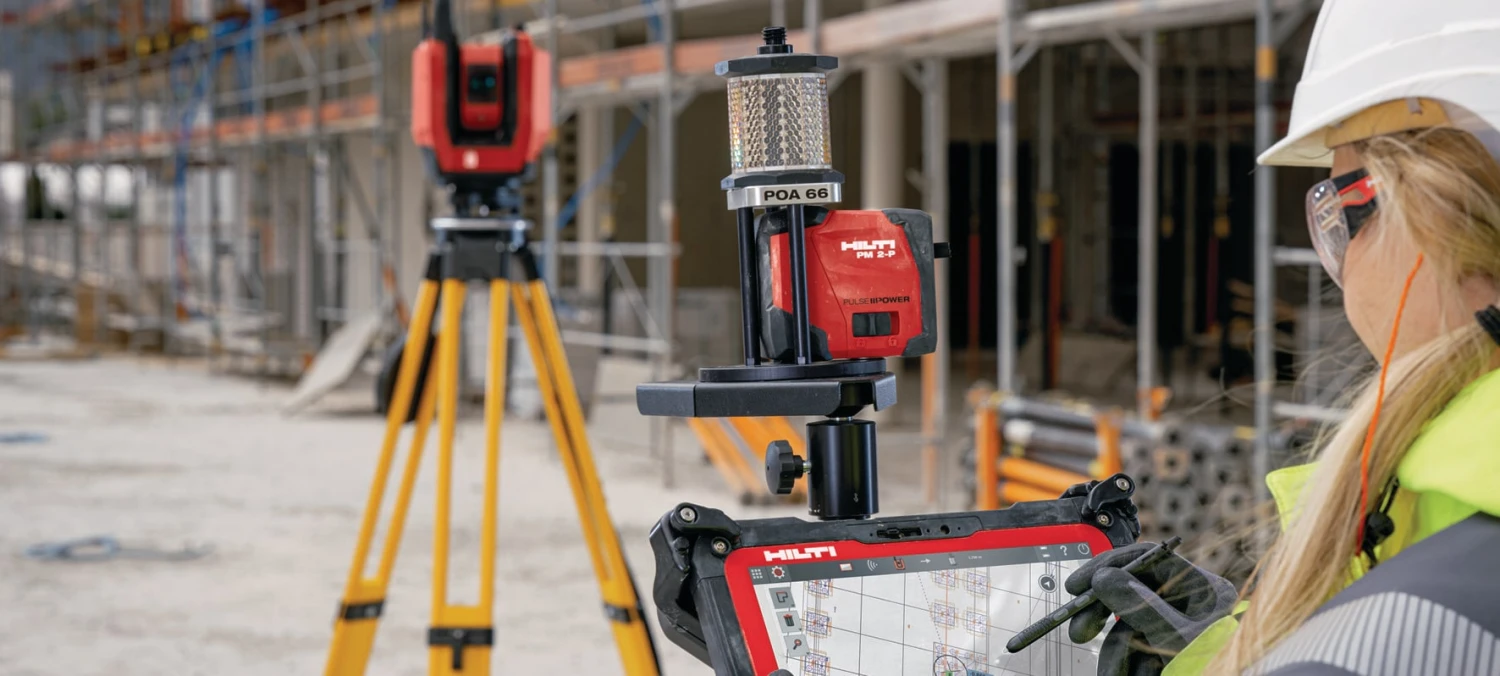

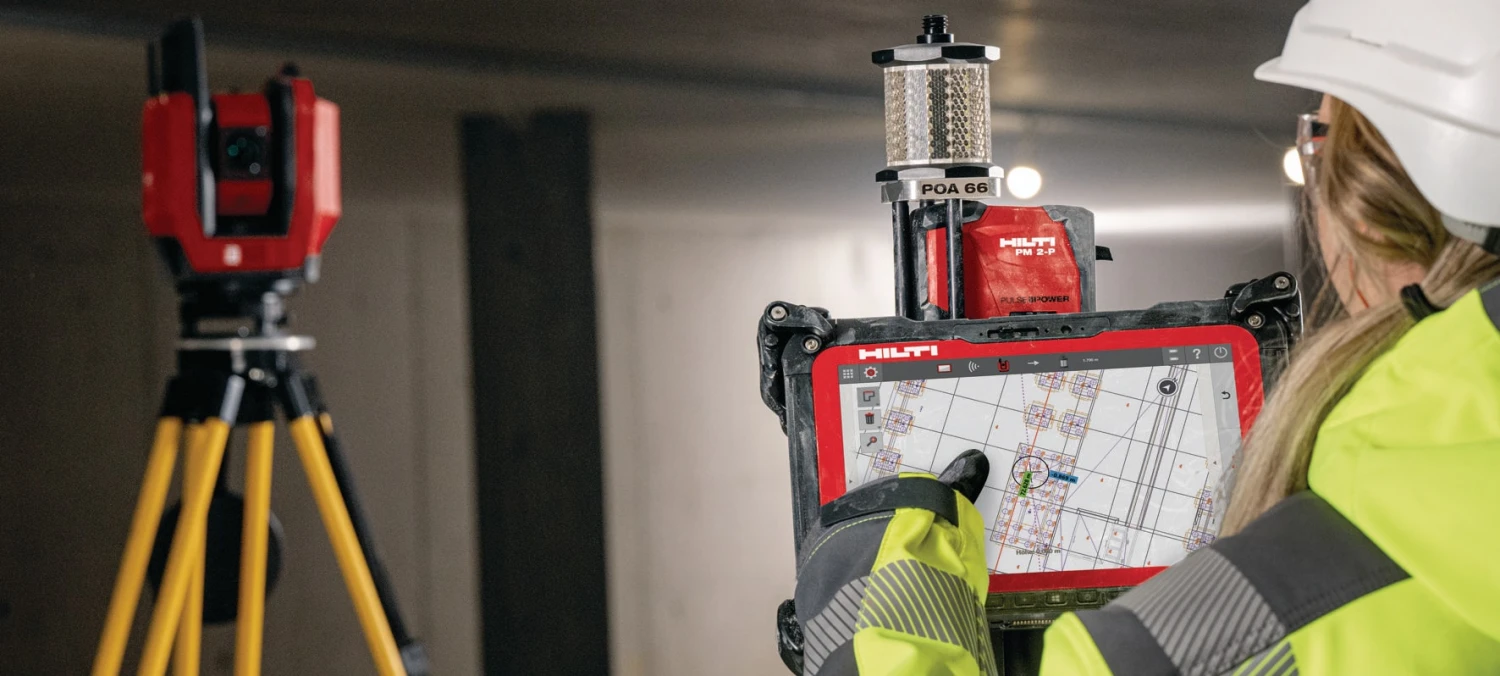

Staking out 2D and 3D positions on the jobsite

Layout and verification of foundations, underground plumbing, formwork and other important construction elements

Layout of fastening points, penetrations and sleeves on floors and ceilings

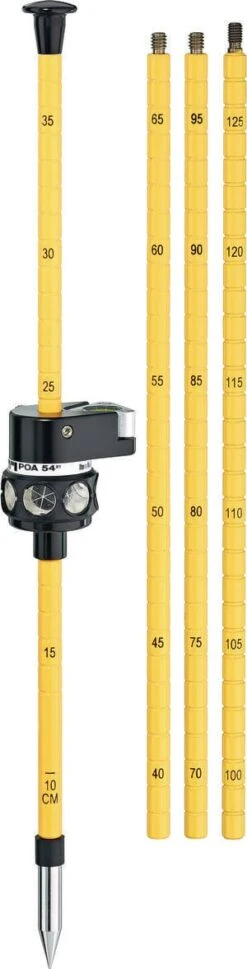

Setup via grid lines, ground control points, reflectors, prisms or existing elements like walls and columns

As-built measurements for documentation, calculation and quality control
